ULT Deep Freezer -86℃ MBMSJ-1169-INV-01

Click To Scan

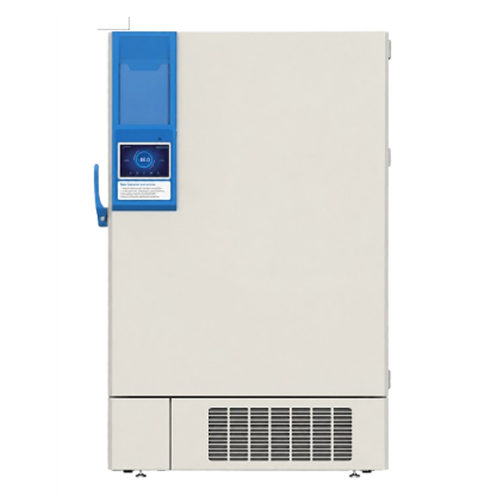

ULT Deep Freezer -86℃ MBMSJ-1169-INV-01

Additional Features

Cascade system ULT freezer that consists of two stages cascade cooling technology with absolute hydrocarbon refrigerant, which are CFC-free, HCFC-free non-flammable refrigerants. The inverter compressors programmed to help energy savings under long period preservation or provide fast temperature recovery while frequently door open to maintain specimens liveness.

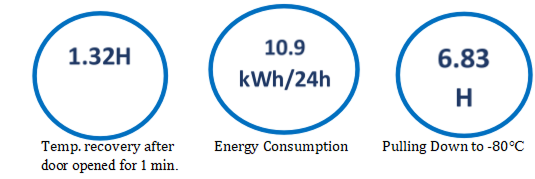

*Typical freezer data based on internal testing with freezer set point at -80℃ and ambient temperature at 25℃

Additional Features

Temperature Control System
Display temp. in 0.1℃ increments

Brand Compressor

Co2 Back Up System
Optional for extra security for sample

Touch Screen
10″LCD touch screen

CFC-free, HCFC-free non-flammable refrigerants

Alarm System
12 kinds of alarms functions



Technical Specifications

Capacity 1000L
Internal Size (W*D*H) mm
1022*696*1378
External Size (W*D*H) mm
1362*1025*1994
Package Size (W*D*H) mm
1473*1155*2176
NW (Kgs)
387
Temperature Range
-40~-86℃
Ambient Temperature
16~32℃
Cooling Performance
-86℃
Noise level
Less than 55 dB
Controller
Microprocessor
Display
10” HD Intelligent Touch Screen
Compressor
2 Nos.
Cooling Method
Direct Cooling
Defrost Mode
Manual
Refrigerant
CFC-free, HCFC-free non-flammable refrigerants
Insulation Thickness(mm)
D:109, L/R:130, B:120
External Material
Cold Rolled Steel Sheet with epoxy finish
Inner Material
Stainless Steel 304 grade material
Shelves
3(Stainless Steel)
Access Test Port
3pc. Ø 25 mm
Casters
4+(2 balancing feet)
Data Logging/ Interval /Recording Time
USB/Record Every 5 Minutes/10 Years
Interface
Remote Alarm Contact, RS485
Ground Clearance
100mm
Temperature Alarm
High/Low Temperature, High Ambient Temperature
Electrical Alarm
Power Failure, Low Battery, Battery Power Detection
System Alarm
Sensor Error, Main Board Communication Error, Door Ajar High Temperature Level Alarm, Condenser Overheating Alarm
Power Supply(V/Hz)
220-240V, 50/60Hz
Rated Current(A) Data
7.44A

At A Glance

  • Decompression valve facility to lower air pressure inside freezer for easy door opening and allowing user to re-open the door within 5 minutes
  • IOT module that features to send auto alert on mobile phone/personal computer through message or data logging software
  • Maintain uniform and stable sample temperature of -80ᵒC (±3ᵒC)
  • Single outer door
  • Washable condenser filter indicator which keep fins free of dust to maintain peak cooling efficiency
  • Facility to integrate ID card and electronic lock and door lock which is padlock compatible
  • Flexible partitions that can be adjusted to accommodate 770 boxes of 2inch height and storage capacity of 1.5smL micro-centrifuge tubes in 10 x 10 tubes format
  • Hermetically sealed refrigeration compressor
  • Temperature and door opening log for 30 days in the display panel with storage memory and USB port to download the logs
  • Cooling down time form -50ᵒC to -80ᵒC : 6 hrs.
  • Main storage area come with four anti-corrosive inner compartments each with insulated door and adjustable height shelves
  • Vacuum insulation panel for thermal insulation
  • Anti-corrosive and rust-proof internal
  • Display panel have back-up and security lock with the facility to set alarm for temperature fluctuations, power failure, system failure, generic service warning, low display battery and set security passcode
  • Secured power-switch to avoid accidental switch-off of unit
  • Voltage stabilizer for maintaining voltage between 190-270V
