| Cabinet Type | Upright (Vertical) |
|---|---|
|
Storage Volume |
600L |
|
Temperature Range |
-40°C to -86°C |
|
Default Set Point |
-81°C |
|
Power |
100-240V /50/60Hz |
|
Current |
14A (at 100V) ,6.5A(at 240V) |
|
Power Cord Length |
1.7m |
|
Door type |
Solid door |
|
Application Environment |
Non-corrosive, non-flammable, non-explosive |
|
Outer Chamber Material |
Heavy gauge steel with powder coating |
|
Inner Chamber Material |
Stainless steel 304 grade |
|
Ambient Operating Temperature |
10°C~32°C |
|
Refrigeration System |
Dual Inverter cooling |
|
Compressors |
2 Nos. |
|
Condenser Type |
Air cooling |
|
Expansion Device |
Capillary tube |
|
Evaporator Type |
Built-in |
|
Defrost Method |
Manual defrosting |
|
Refrigerant |
CFC-Free, HCFC-Free non-flammable |
|
Display screen |
10.1“LCD Touch screen |
|
Controller Type |
Microprocessor |
|
Security |
Lockable door, password protected settings |
|
Control Sensor |
PT1000, stainless steel |
|
Communication Ports |
USB, Remote alarm contacts |
|
Power Failure Alarm |
Yes |
|
High/Low Alarm |
Yes, fully adjustable |
|
Door Ajar Alarm |
Yes |
|
Sensor Alarm |
Yes |
|
System Failure Alarm |
Yes |
|
Battery Low Alarm |
Yes |
|
Temperature Log |
Yes, download by USB |
|
Battery Back-up |
Yes, 17 hr. display and alarm back-up | Rechargeable 12V, li-ion battery |
|

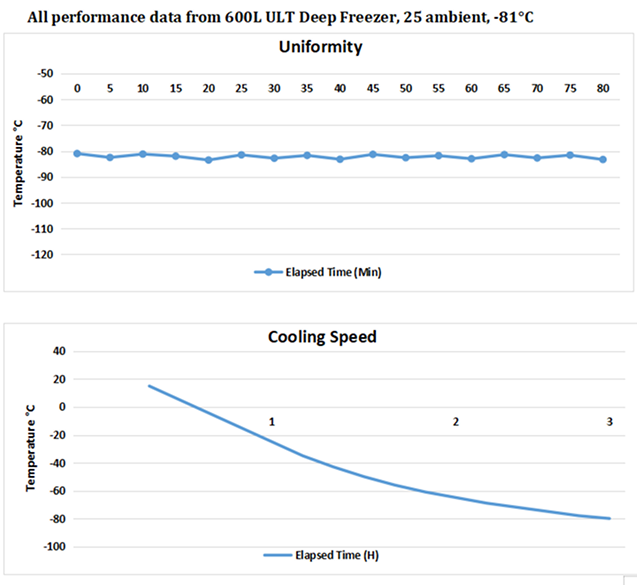

Uniformity |
±3°C |
|

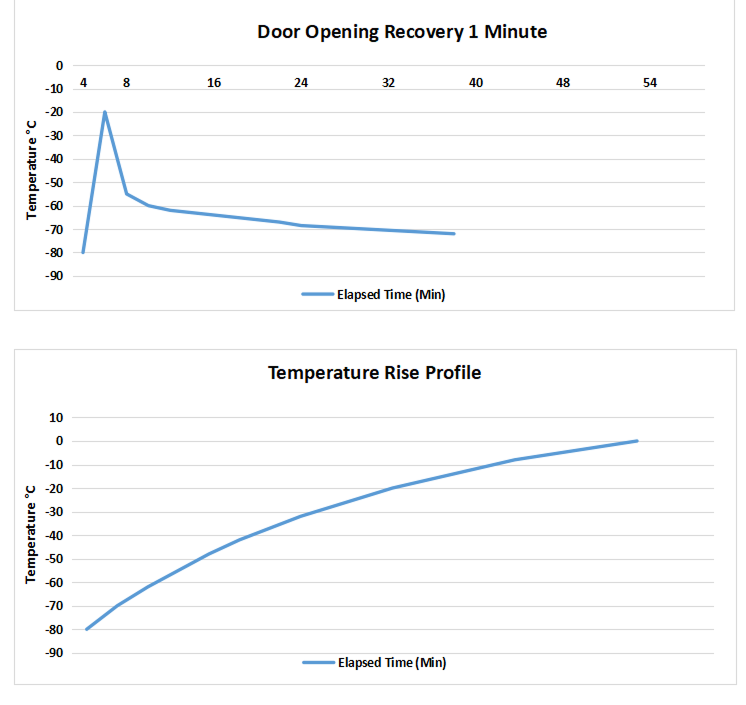

Recovery to -75°C after 1 min door opening |
20 Min. |
|
Energy consumption |
6.5 kWh/day |
|
Noise emission |
46 dB |
|
Heat rejection |
1638 BTU/hr. |
|
Pull down time from ambient to -85°C |
348 Min. |
|
Backup Time |
17 Hour |
|
Accessories |
Racks, Cryo-gloves, Temperature Chart Recorder, CO2 Backup System , 5KVA Voltage Stabilizer |
|
Internal (W*D*H) |
740*720*1310 mm |
|
External (W*D*H) |
1030*995*1980 mm |
|
Access Port |
2 Access Port- for external monitoring probe(s) (25 mm diameter) |
|
Shelf |
3 | 87 kg max capacity |
|
Wheels |
4 Swivel Casters + 2 Leveling Feet |
|
Net Weight |
320 kg |
|
Gross Weight |
370 kg |
