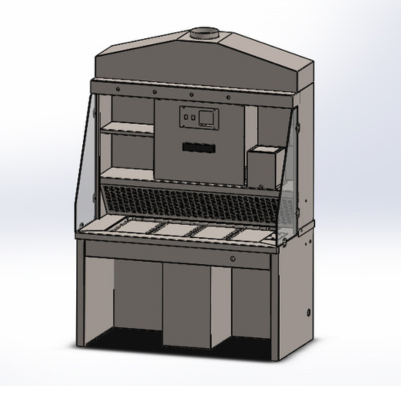

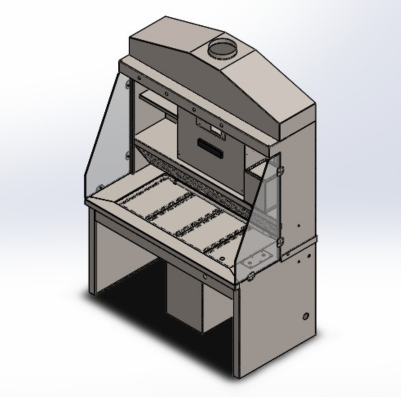

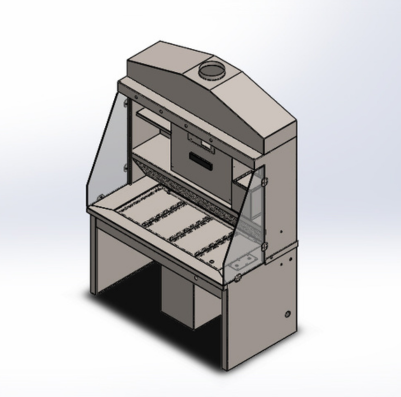

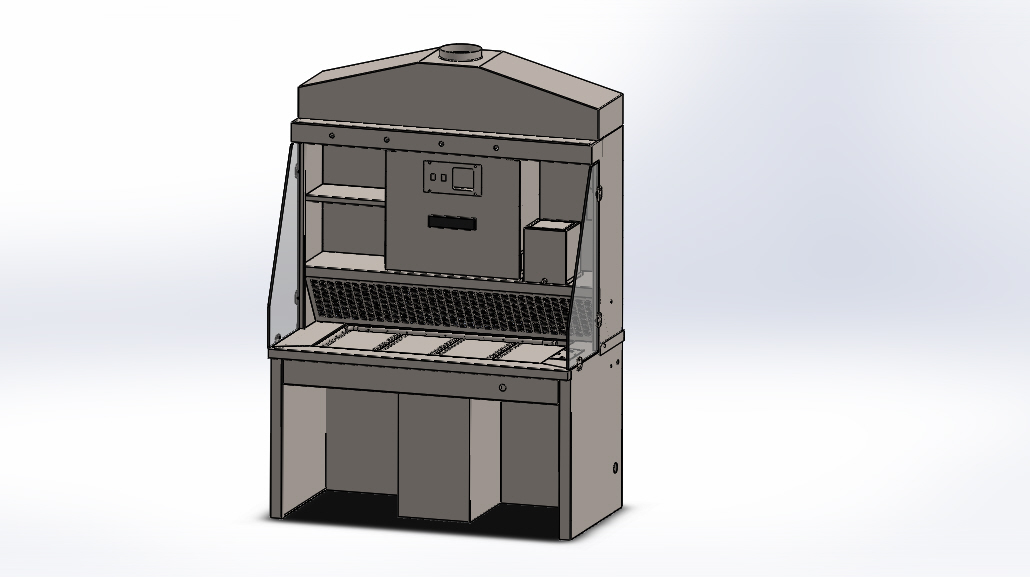

The Grossing Stations from Biomedical Solutions are engineered to deliver robust, customizable, and cost-effective workstations for advanced laboratories. Featuring height-adjustable functionality, multi-user support, an integrated gross imaging system, and a formalin monitor, these workstations are designed for optimal performance.
Ergonomically crafted with enhanced suction capacity and precision height adjustment, the elevating Series promotes high-efficiency grossing while protecting users from exposure to harmful formalin fumes.
Constructed from smooth-finish, high-grade stainless steel (SS-316) for superior durability and corrosion resistance.
Electronically controlled height adjustment of up to 300 mm for enhanced ergonomics and user comfort.
Designed to be suitable for multiple users, ensuring flexible operation.
Equipped with a top-mounted white daylight fixture with a dimmer switch for optimal illumination of the work area.
Dual extraction system with downdraft and rear suction for effective fume removal.
Exhaust duct ventilation with integrated filtration system for efficient elimination of hazardous fumes and vapors.
Perforated working area with removable plates, fitted with finger holes for easy handling, ensuring hassle-free cleaning and maintenance.
Foot-operated faucet control for convenient and hands-free water operation.
Integrated drainage system with circulating tap water across the perforated work area for effective washing.
Flexible hose assembly with hand-operated control for versatile use during grossing procedures.
Formalin waste drain covered with a fine mesh screen to prevent clogging and ensure safe disposal.
Formalin dispenser and storage tank with a minimum capacity of 10 liters for controlled and safe dispensing.
Dedicated waste formalin collection tank with drainage provision, minimum capacity of 20 liters, ensuring safe handling and disposal.
Safety glass panels at the front and sides with acrylic protection for operator safety and visibility.
Service door and telescopic shelf designed to accommodate the formalin storage tank conveniently.
Adjustable extraction air volume with fresh air connection, enabling controlled airflow and enhanced user safety.
Detection range: 0.1 to 5 ppm
Data storage capacity: Up to 3 months of continuous readings
High-quality dissection boards
Instrument holder for organized workflow
Magnetic tool bar for secure placement of metallic instruments
Magnifying glass with integrated LED illumination for enhanced visibility
Trimming blades (130 mm) for precise specimen preparation
Cup and tube holders
High-definition (HD) or Ultra HD 4K scientific-grade digital camera
Minimum resolution: 20 megapixels, designed for capturing gross lesions
Touchscreen monitor with integrated keyboard, mouse, and adjustable holding assembly
Supports Full HD / 4K video recording
Multiple connectivity options: USB 3.0, HDMI, Wi-Fi, and LAN
Real-time streaming and transfer capability for collaborative use
Internal SSD (512 GB) for reliable data storage
Cross-platform compatibility with Windows, Android, and Mac operating system
Model No. | MBMSJ-1022-01 |
Material of Construction | High-grade Stainless Steel (SS316) |
Ventilation | Back Draft |
Dimension (L X W X B) | 2000 X 1000 X 1900 mm |
Work Surface | Adjustable from 900 mm (minimum) up to 1200 mm |
Sink | Seamless Stainless Steel 316 |
Filters | Water-washable polyester pre-filters with optional custom-designed filters |
Electrical | 220–240 VAC, 50/60 Hz, 1 Phase (110 V available on request) |
Plumbing | ½” industrial-grade, 1-meter flexible hose for hot and cold water connection; 1½” drain hose for waste disposal |
Waste Disposal Unit | 0.55 HP high-capacity waste disposal unit |
Exhaust Air Capacity | 1800 CMH |
Perforated Working area | 1450mm length x 470mm width |
Exhaust Duct Diameter | 200mm |
