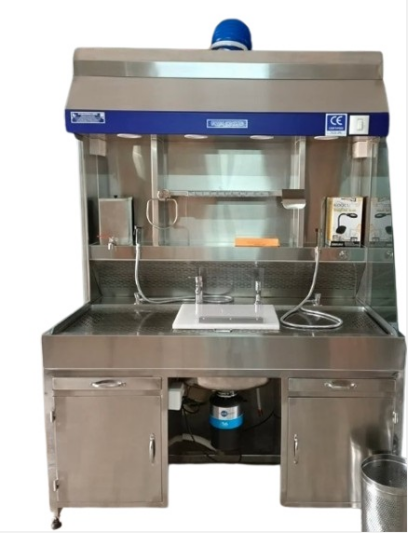

Grossing stations for medium and large laboratories are designed with high suction capacity and advanced ergonomic features to support high-productivity gross examination workflows. The system provides a safe working environment by effectively minimizing user exposure to harmful formalin fumes, ensuring enhanced comfort, safety and operational efficiency.
Fabricated from medical-grade
Stainless Steel 304 corrosion resistance, durability and easy maintenance
Laser Engraved Cutting Board
Polyethylene Dissecting Board for
Dissecting and for Photography
Perforated countertop
Removable perforated worktop
Large capacity Sink
Deep Sink with Cold water mixer Faucet.
Built-in Ventilation
Capable of removing all formalin fumes from work top and from Technician’s breathing zone
Backflow Extraction
Back Draft fume Removal system.
Custom-made Filters
Cleanable Pre Filter to remove fine
particles.
Ergonomic Design
Worktable Height : 900mm
(normal position)
Transparent Panels
Transparent Lexan air deflector
panels
Powerful Lights
Powerful LED Lighting
Boundry Wash
Perimeter rinsing for easy cleaning of work surface
C-Fold towel Holder
Multi-Axis Adjustable Lamp
Magnifying Lamp fixture for mounting3 axis adjustable magnifying Lamp.
Grossing Imaging System
Image capture, Video, Measure &
Annotate
Safety Shield
Safety splash shield.
Hands Free Control
Foot operated mixer faucet.
Camera Holder
Adjustable camera holder
arrangement. Adjustable Shelving.
MOC: SS316
Higher grade, SS 316 Construction for better chemical resistance and greater life
Digital Weighing Scale
Formaldehyde meter
Optional Carbon Filter
Optional Carbon filter | potassium permanganate filter
Pullout Pad
Pull out writing pad with storage.
Trash Cabinet
Removable Ventilation Trash
cabinet withwheel arrangement.
Formalin Monitoring System
MBMSJ provides everything from the design stage through to installation and servicing. MBMSJ is committed to designing and manufacturing innovative and ergonomic work stations to enhance your facility’s safety, flexibility and productivity. We offer customized solutions for specific needs of pathology laboratories. We determine needs and solutions together with you after having listened problems while
visiting your laboratories. Ventilated unit designed for gross examination, sectioning of specimens, animal necropsies, surgical procedures, perfusions, dissections, and chemical handling. Aspiration system that directs airflow from the front of the cutting surface to the rear, creating a laminar airflow pattern. Continuous ventilation protects the user from hazardous formalin exposure.
The Elevating series grossing workstation is engineered to be robust, affordable, and easily customizable ideal for large or growing pathology labs. Key features include.
– Multi-user support, facilitating teamwork and efficiency
– Inbuilt gross imaging system and formalin monitor for enhanced documentation and safety
– Additional suction provided at the level of formalin tank
– In-house ventilation system with dual 8″ duct stubs
– Designed with ergonomic features that promote productivity while minimizing fatigue and exposure
– Exhaust air flow must be more than 1300 m3/h
– Spacious working area with smooth surfaces for easy cleaning and maintenance
This workstation delivers a strong balance of safety, usability, and performance giving you large-lab capabilities without compromising on affordability or user well-being
| Leg frame, shelf, work surface, sink and taps Material | SS304 (Standard) / SS316 (Optional) |
|---|---|
|
Ventilation |
Built in air flow monitoring system which has flow detection system with backdraft alert monitoring to ensure proper ventilation performance. |
|
Overall Dimensions
(W x D x H) |
6 ft x 2.5 ft x 7 ft |
|
Work Surface |
900mm Minimum height Height can be increased upto 1200mm by feather touch controls |
|
Sink |
380mm length x 350mm width x 180mm deep sink |
|
Filters |
Water washable polyester prefilters along with optional custom designed filter |
|
Electrical |
220 – 240 VAC 50/ 60 Hz, 1 Phase, 110 V supplied on request |
|
Plumbing |
1/2″ industrial grade 1meter flexible hose supplied for hot and cold water connection
1 1/2” drain hose (waste disposal) |
|
Waste Disposal |
0.55 HP High capacity waste disposal unit |
|
Exhaust air capacity |
1800 CMH |
|
Perforated working area |
1450mm length x 470mm width |
|
Exhaust Duct Diameter |
200mm diameter |
|
Storage cabinets |
Plastic tank 80 liters with big lid |
